FEEDING

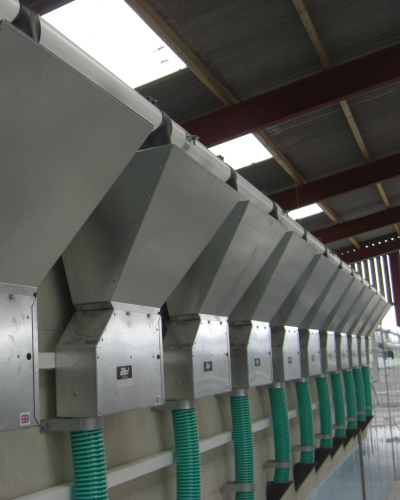

Herringbone Parlour Feeding

The ATL herringbone parlour feeder is unique in that it has been designed to suit any milking parlour simply by choosing the appropriate hopper from the extensive range, and fitting the standard feeder unit.

Contact US
System Specifications

One universal feeder makes installation and maintenance fast and cost effective. The feeder has been designed to deliver the most popular feed grades up to 3/8" pellets and free-flowing home mixes such as rolled barley and maize.

Feeder Dimensions – 470 x 270 x 115mm (18.5 x 10.6 x 4.5″)
Nominal 12vDC motor, diodes pre-fitted, motor electrically isolated, common negative or positive, timed running, power supply entry through grommet on either side of feeder
Heavy duty steel construction with rolled edges for extra strength and safety – 18 swg galvanised or stainless steel
Stainless steel rivets, bushes and bolts used throughout for a long, corrosion free life
Simple, positive fixing system provides fast installation and easy maintenance
Fixings – Six M6 stainless steel bolts, cut-off and calibration slides supplied
Chute / downpipe – 76mm (3″) OD flange
For hopper dimensions see leaflet
Individual and global digital feeder calibration
